The Plan Sheets Comparison feature allows you to view two different plan sheets—or two versions of the same sheet—side-by-side, making it easy to spot differences, revisions, updates, and discrepancies between them.
- Highlights alterations in plan drawings to pinpoint additions, removals, or modifications.
- Ensures accurate project documentation by identifying changes and avoiding discrepancies between different drawing versions.
- Visualize changes in plan drawings to improve team coordination.
- Foresee potential issues, reducing errors and minimizing the need for costly rework.
Compare Versions
- If you do not have the plan sheet already open:
- Open the management console for the project
- Click the app launcher icon
in the top-right, then select 'Documents.' - Click 'Plans' on the top and choose 'Plan Sheets' on the left
- Click on the thumbnail to open the latest version of the plan sheet
Click the 'Compare'
button on the top right

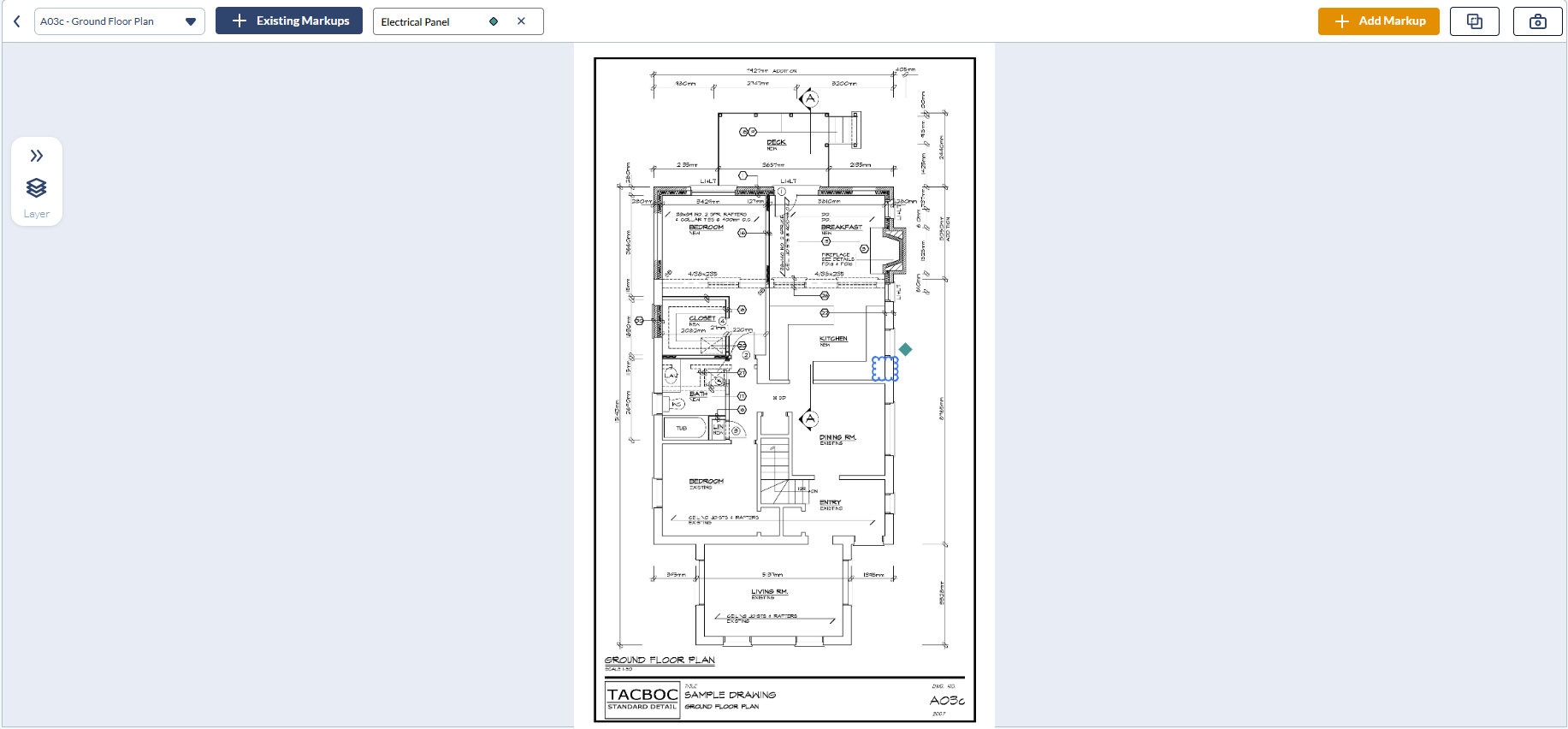

The compare sheets pop-up opens:
The first sheet is set as the opened sheet by default. You can change it if required by clicking 'Change' at the top right.
- Click inside the 'Select sheet code' field, type the first few letters of the sheet number to search, and choose the desired sheet or version from the results to begin the comparison.
- Click the 'Compare' button
The system overlays one sheet on top of the other and automatically highlights all differences. Changes are visually marked using red and blue indicators for easy identification.
You can use the visibility options on the left to view the individual sheets.
