Add a Location Markup

The location tool helps you mark exact points on a plan drawing for clarity and reference.

• Pinpoint specific spots on the plan to highlight areas of interest, such as punch list items or RFI references.
• Add text notes and arrows to your location markups to provide additional context and explanation.
• Alternatively, use the Location Identifier tools to place graphical pins that mark precise positions for specific tasks or installations. For more details, refer to Mark Location Identifiers.

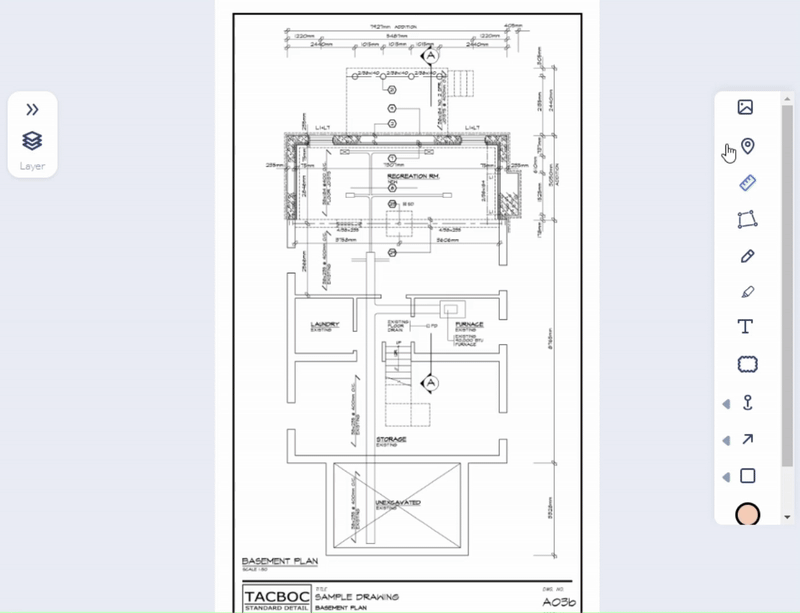

To add a  location markup

• Click the location pin tool from the toolbar.
• Click the spot on the plan where you want to place the pin.

• Click on the pin and drag it to the precise location if needed.
• Drag the corners to resize the pin.

The markup element is added as a layer to the 'Draft' group. It is shown in the layer editor on the left.

• Use the icon to show or hide the layer
• Click the icon to remove an element added by mistake
• Click the element label in the layer editor and edit it with a brief description of its purpose, if needed, to keep your elements organized.
• Go to the next tool if you want to add more markup elements.
• Once you are done with the markup elements, save the layer group as a markup. See Publish Markups for more details
